Panasonic Electronic Components

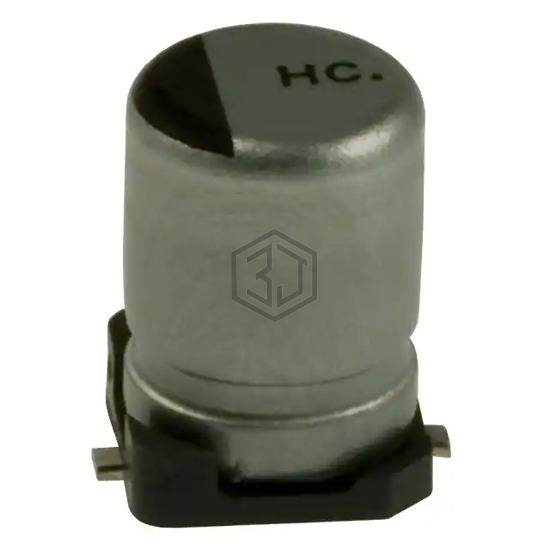

CAP ALUM 22UF 20% 6.3V SMD
EEE-HC0J220R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,381
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 44.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3SGV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 97% | View |
| 6.3SLV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 91% | View |
| UE226M6V3HCHTA | Aillen | CAP ALUM 22UF 20% 6.3V SMD | 90% | View |
| EEE-HA1J220UP | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 77% | View |
| UWZ1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 64% | View |
| 35SKV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 53% | View |
Submit your RFQ for EEE-HC0J220R and get a quote within 24 hours.
