CAP ALUM 22UF 20% 10V SMD

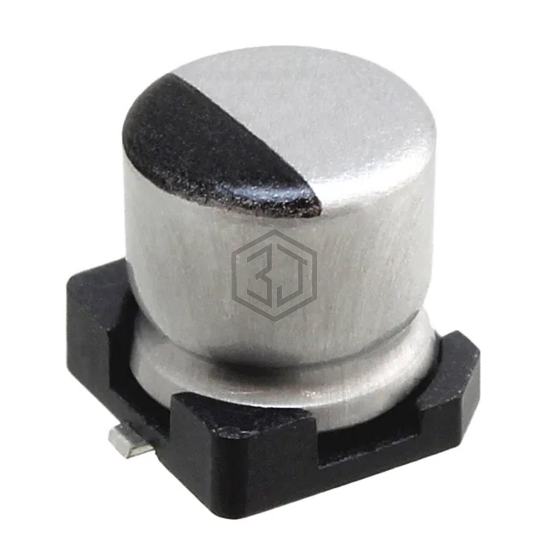

UWJ1A220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,196
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWJ1A220MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HA1C220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 75% | View |
| EXV226M010A9BAA | KEMET | CAP ALUM 22UF 20% 10V SMD | 70% | View |
| EEE-FK1A220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 69% | View |
| TYEH1V226F55MTR | TE Connectivity Passive Product | CAP ALUM 22UF 20% 35V SMD | 61% | View |
| UUL1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| EMK1VM220E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
Submit your RFQ for UWJ1A220MCL1GB and get a quote within 24 hours.
