Panasonic Electronic Components
CAP ALUM 22UF 20% 16V SMD

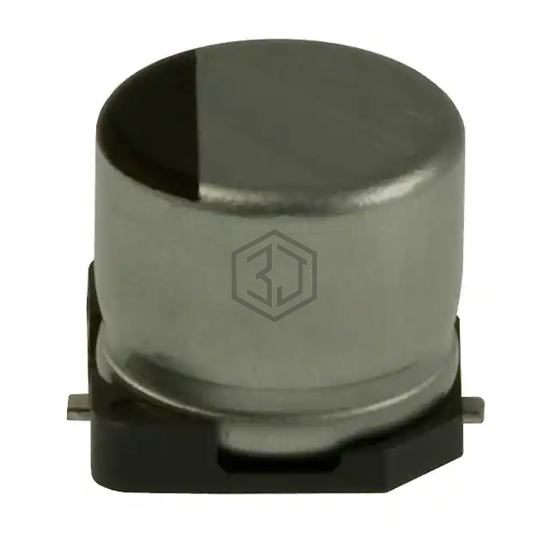

EEE-HA1C220AR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,460
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 66.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HA1C220AR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 226AXZ010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 10V SMD | 80% | View |
| TYEH1V226F55MTR | TE Connectivity Passive Product | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| UUL1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 71% | View |
| BMVK6R3ADA220ME60G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 57% | View |
| EMK1VM220E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
| EEE-FK1C220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 53% | View |
