CAP ALUM 22UF 20% 35V SMD

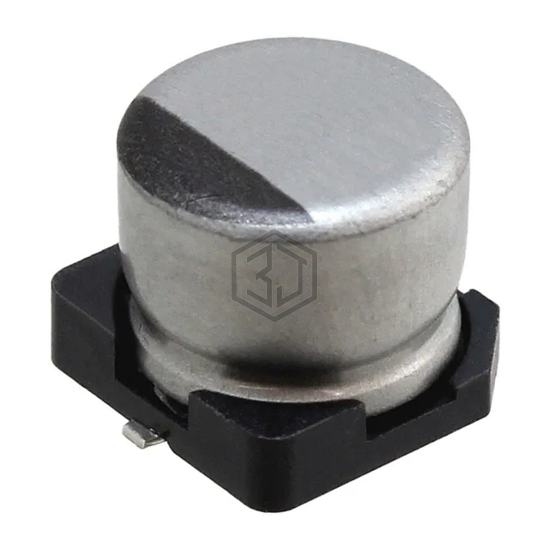

UWF1V220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,327
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 57.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115 mA @ 100 kHz |
| Impedance | 1.3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWF1V220MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 85% | View |
| CEE1J220MCB0862 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 82% | View |
| ATB226M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 76% | View |
| UUD1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 62% | View |
| EMVY500ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| AVES226M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V SMD | 59% | View |
Submit your RFQ for UWF1V220MCL1GB and get a quote within 24 hours.
