CAP ALUM 47UF 20% 25V SMD

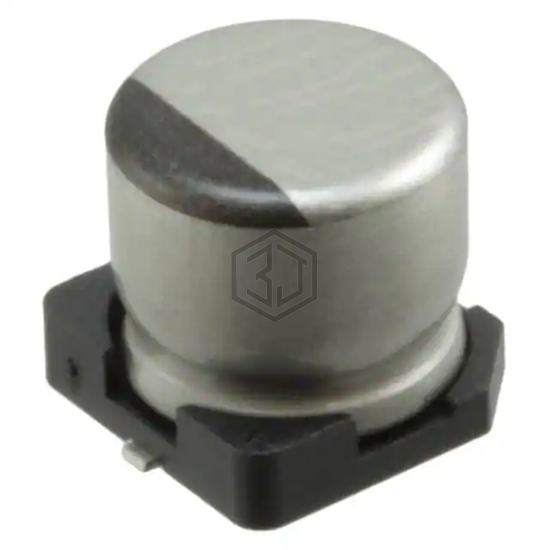

UWD1E470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 440 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MZA16VC47RMF61TP | United Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 80% | View |
| ATB476M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 35V SMD | 74% | View |
| UCD1J470MNS1GS | Nichicon | CAP ALUM 63V POLAR | 74% | View |
| UUA1V470MNL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 72% | View |
| UZ476M016HDHTA | Aillen | CAP ALUM 47UF 20% 16V SMD | 68% | View |
| 16SZV47M6.3X5.5 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 65% | View |
Submit your RFQ for UWD1E470MCL1GS and get a quote within 24 hours.
