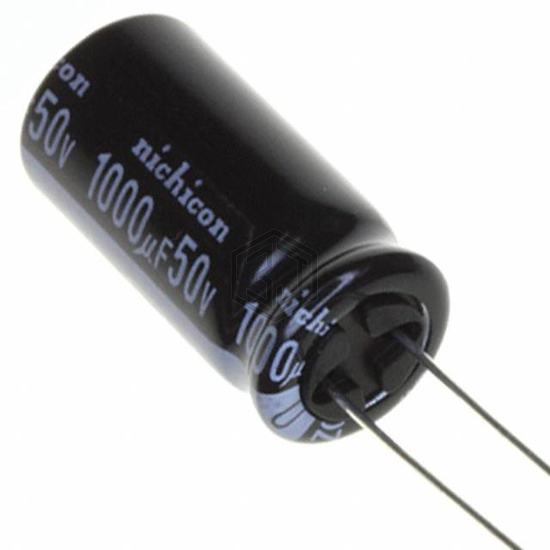

CAP ALUM 1000UF 20% 50V RADIAL
UVZ1H102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,159
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0925 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1H102MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H102MHD1CV | Nichicon | CAP ALUM 50V POLAR | 100% | View |
| UPW1C102MPH | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 75% | View |
| MAL212384102 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V AXIAL | 70% | View |
| UPA0J102MPD6 | Nichicon | CAP ALUM 1000UF 20% 6.3V RADIAL | 66% | View |
| SEK102M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V RADIAL | 56% | View |
| UPA1C102MPD6TD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UVZ1H102MHD and get a quote within 24 hours.
