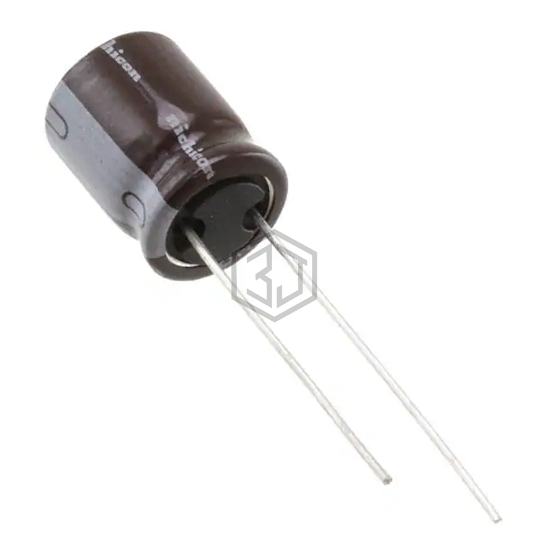

CAP ALUM 1000UF 20% 6.3V RADIAL
UPA0J102MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,599
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 675 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXJ102M0JBK-1020S | Surge | CAP ALUM 6.3V POLAR | 89% | View |
| UPA1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 71% | View |
| SEK102M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V RADIAL | 70% | View |
| UPW1C102MPH | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 67% | View |
| UVZ1H102MHD | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 66% | View |
| UPA1C102MPD6TD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UPA0J102MPD6 and get a quote within 24 hours.
