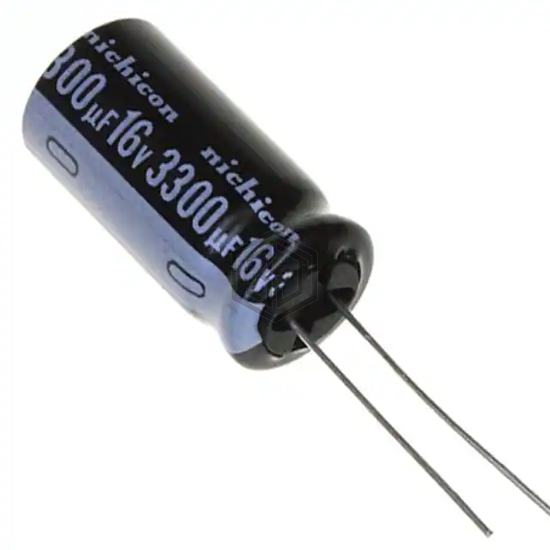

CAP ALUM 3300UF 20% 16V RADIAL
UVZ1C332MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,219
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.3455 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1C332MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213635332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 93% | View |
| 678D338M6R3DS3J | Vishay Sprague | CAP ALUM 3300UF 20% 6.3V RADIAL | 74% | View |
| 678D338M020FV4D | Vishay Sprague | CAP ALUM 3300UF 20% 20V RADIAL | 74% | View |
| MAL211846332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V T/H | 71% | View |
| 6.3PX3300MEFC10X20 | Rubycon | CAP ALUM 3300UF 20% 6.3V RADIAL | 71% | View |
| SEK332M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 25V RADIAL | 71% | View |
Submit your RFQ for UVZ1C332MHD1TO and get a quote within 24 hours.
