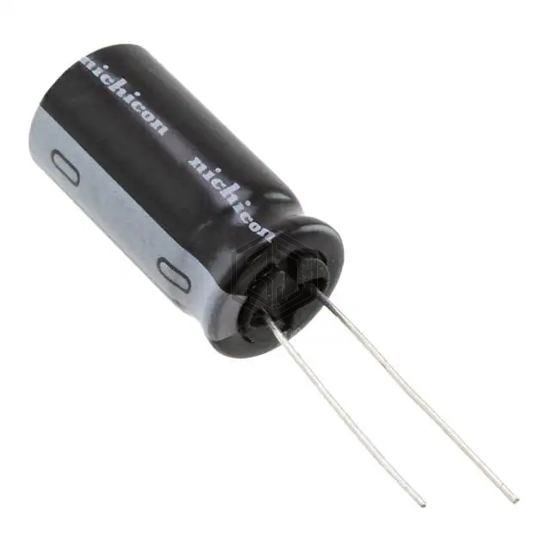

CAP ALUM 47UF 20% 200V RADIAL
UVY2D470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 8,080
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 224.25 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2D470MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 630D476M200FH2A | Vishay Sprague | CAP ALUM 47UF 20% 200V AXIAL | 100% | View |
| MAL215262479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V RADIAL | 93% | View |
| MAL216060479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 56% | View |
| 63YXG47MEFC8X11.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL TH | 56% | View |
| 510D476M016BB3D | Vishay Sprague | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
| 511D476M250EN4D | Vishay Sprague | CAP ALUM 47UF 20% 250V RADIAL | 54% | View |
Submit your RFQ for UVY2D470MHD and get a quote within 24 hours.
