Vishay Beyschlag/Draloric/BC Components

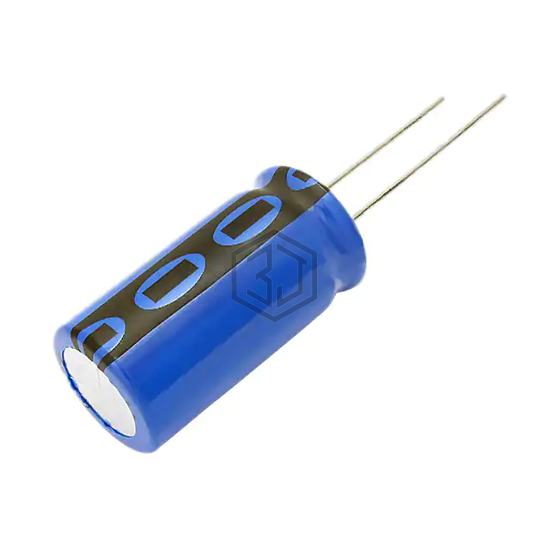

CAP ALUM 47UF 20% 35V RADIAL
MAL216060479E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216050479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 100% | View |
| MAL216030479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 100% | View |
| UBX1V470MPL1TD | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 100% | View |
| UBX1V470MPL | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 100% | View |
| UBX1V330MPL | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 72% | View |
| UBX1V330MPL1TD | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for MAL216060479E3 and get a quote within 24 hours.
