CAP ALUM 10000UF 20% 50V RADIAL

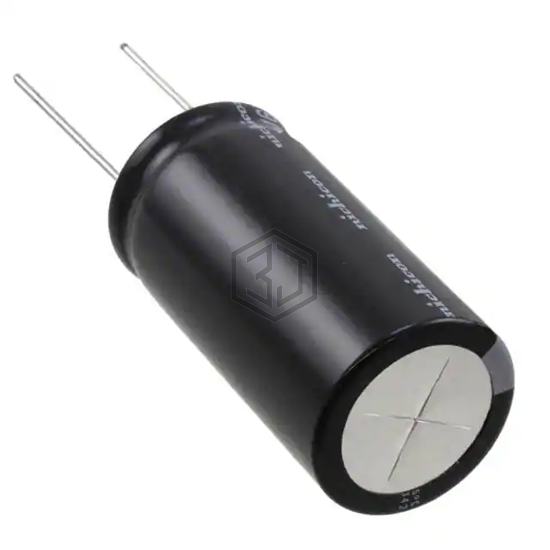

UVY1H103MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,349
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2775 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1H103MRD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1V103MRD | Nichicon | CAP ALUM 10000UF 20% 35V RADIAL | 86% | View |
| UPS1A103MHD | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 70% | View |
| MALREKB00KL510D00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 66% | View |
| ECA-1CHG103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 63% | View |
| EKMG160ELL103MMP1S | United Chemi-Con | CAP ALUM 10000UF 20% 16V RADIAL | 62% | View |
| EKMQ6R3ELL103ML25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 51% | View |
