CAP ALUM 10000UF 20% 10V RADIAL

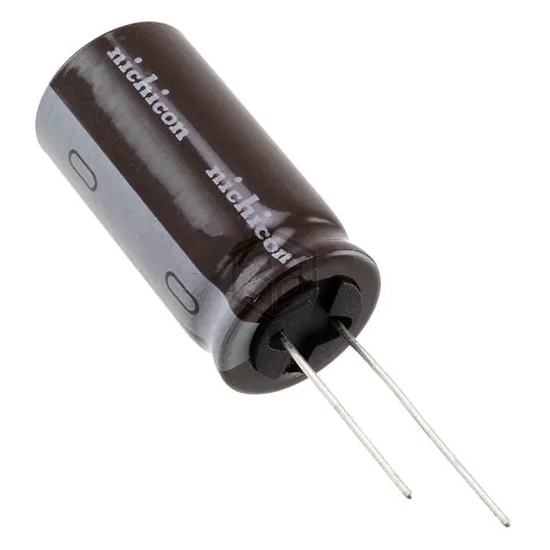

UPS1A103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,444
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.349 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1A103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00JL510CG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 97% | View |
| MALREKB05JL510C00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 97% | View |
| MALREKB00JL510C00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 97% | View |
| ECA-1CHG103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 79% | View |
| EKMQ6R3ELL103ML25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 68% | View |
| URZ0J103MHD1TN | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 63% | View |
Submit your RFQ for UPS1A103MHD and get a quote within 24 hours.
