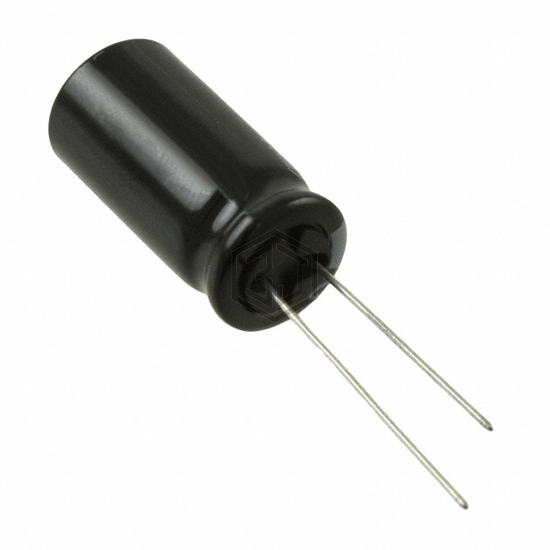

CAP ALUM 2200UF 20% 25V RADIAL
UVY1E222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,755
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.2535 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1E222MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00FE422DG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 81% | View |
| ELXY160ELL222MK30S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 69% | View |
| ELXY100ETD222MK25S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 68% | View |
| MAL214630222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 60% | View |
| 678D228M016ER4D | Vishay Sprague | CAP ALUM 2200UF 20% 16V RADIAL | 57% | View |
| URZ1A222MHD | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 57% | View |
