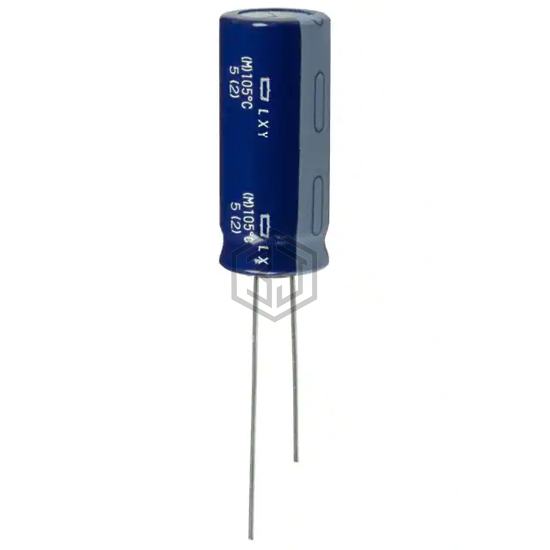

CAP ALUM 2200UF 20% 16V RADIAL
ELXY160ELL222MK30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,681
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.4625 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.95 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00FE422DG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 89% | View |
| ELXY100ETD222MK25S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 80% | View |
| UPJ1A222MHD1TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 79% | View |
| LXZ25VB222M18X20LL | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 77% | View |
| 604D222F020GP2 | Vishay Sprague | CAP ALUM 2200UF 20V AXIAL | 74% | View |
| MAL214630222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 64% | View |
Submit your RFQ for ELXY160ELL222MK30S and get a quote within 24 hours.
