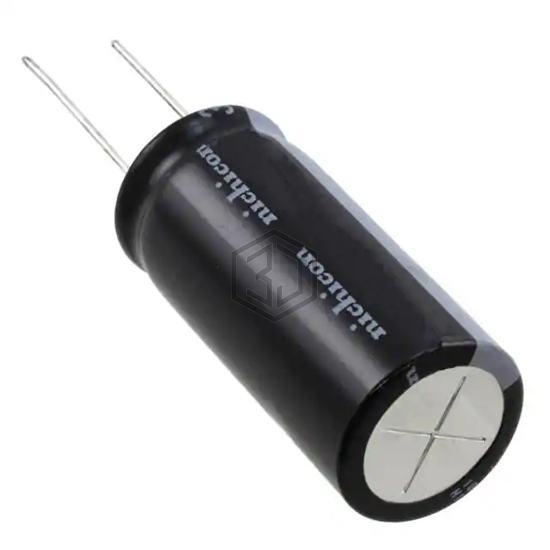

CAP ALUM 10000UF 20% 25V RADIAL
UVY1E103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,954
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1E103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ250ELL103MM40S | United Chemi-Con | CAP ALUM 10000UF 20% 25V RADIAL | 99% | View |
| UKT1C103MHD | Nichicon | CAP ALUM 10000UF 20% 16V RADIAL | 85% | View |
| ECA-1CHG103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 85% | View |
| UVZ1C103MHD | Nichicon | CAP ALUM 10000UF 20% 16V RADIAL | 85% | View |
| 109RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 16V RADIAL | 71% | View |
| URZ0J103MHD1TN | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 64% | View |
Submit your RFQ for UVY1E103MHD and get a quote within 24 hours.
