Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 16V RADIAL

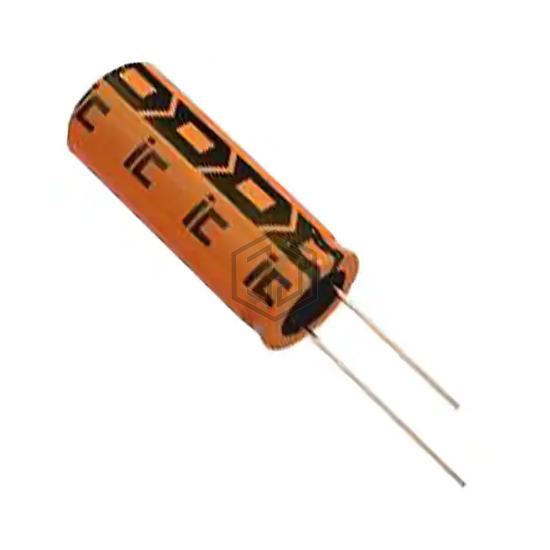

109RZM016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 59.7mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 72 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1C103MHD | Nichicon | CAP ALUM 10000UF 20% 16V RADIAL | 100% | View |
| ECA-1CHG103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 100% | View |
| MALREKB05KL510D00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 100% | View |
| EKMQ250ELL103MM40S | United Chemi-Con | CAP ALUM 10000UF 20% 25V RADIAL | 71% | View |
| EKMQ6R3ELL103ML25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 56% | View |
| URZ0J103MHD1TN | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 56% | View |
Submit your RFQ for 109RZM016M and get a quote within 24 hours.
