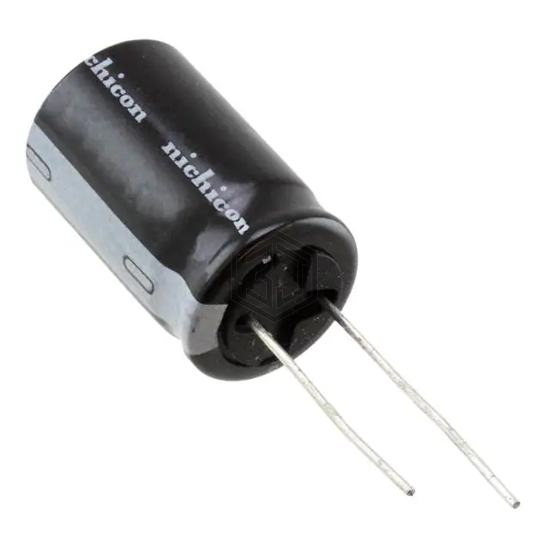

CAP ALUM 6800UF 20% 10V RADIAL
UVY1A682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,597
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8055 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1A682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ100ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 99% | View |
| URZ1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 85% | View |
| RXK682M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 83% | View |
| UVZ1C682MHH | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 80% | View |
| UVZ0J682MHD1TO | Nichicon | CAP ALUM 6800UF 20% 6.3V RADIAL | 79% | View |
| ELXZ6R3ELL682MM20S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 71% | View |
Submit your RFQ for UVY1A682MHD and get a quote within 24 hours.
