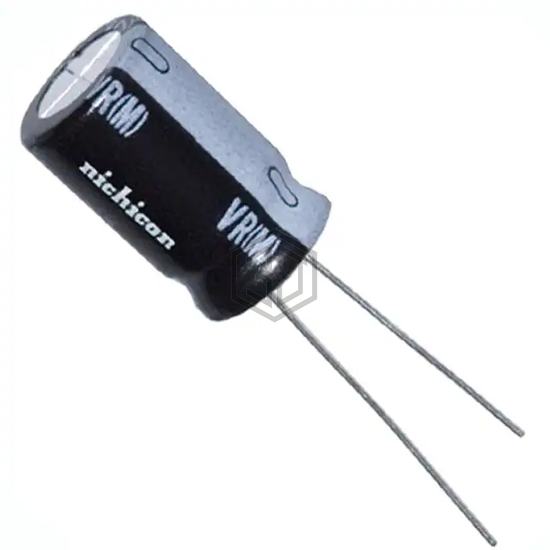

CAP ALUM 33UF 20% 250V RADIAL
UVR2E330MHA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 4,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 368 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR2E330MHA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URU2E330MHD1TN | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 100% | View |
| EGXF351ELL330MU20S | United Chemi-Con | CAP ALUM 33UF 20% 350V RADIAL TH | 82% | View |
| UVZ2V330MHD | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 82% | View |
| TVX2C330MCD1LW | Nichicon | CAP ALUM 33UF 20% 160V AXIAL | 72% | View |
| 100YXJ33M8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 71% | View |
| 50YXJ33MTA5X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 57% | View |
