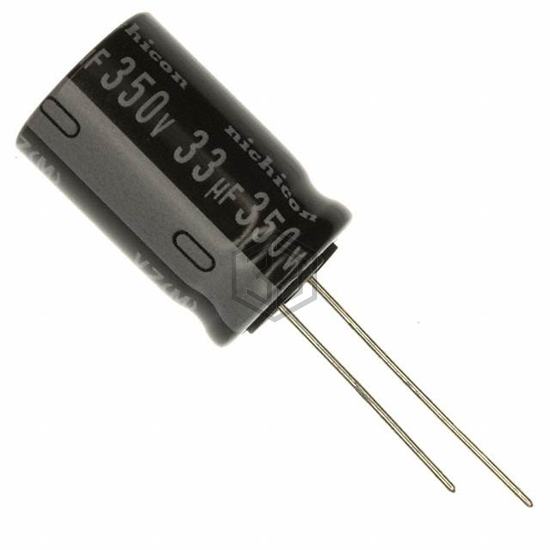

CAP ALUM 33UF 20% 350V RADIAL
UVZ2V330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,458
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 312 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2V330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAQ2G330MHD6TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 96% | View |
| EGXF351ELL330MU20S | United Chemi-Con | CAP ALUM 33UF 20% 350V RADIAL TH | 91% | View |
| 50YXJ33MTA5X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 65% | View |
| 100YXJ33M8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 63% | View |
| 630D336M050DC2A | Vishay Sprague | CAP ALUM 33UF 20% 50V AXIAL | 56% | View |
| UCY2G330MHD3TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 51% | View |
