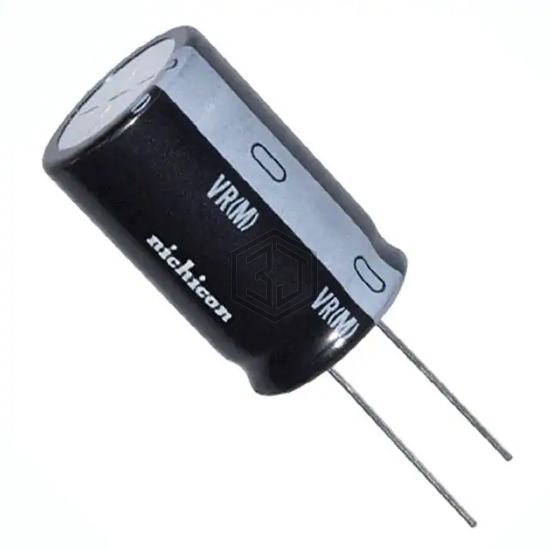

CAP ALUM 10000UF 20% 35V RADIAL
UVR1V103MRA6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,849
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.14 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1V103MRA6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 109LMU035M2CG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 35V SNAP | 98% | View |
| SMH35VS103M30X30T2 | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 97% | View |
| B41231A7109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 35V SNAP | 91% | View |
| EKMH350VNN103MA30W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 88% | View |
| EKMH500VNN103MR50S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 85% | View |
| EEU-HD1C103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 52% | View |
