Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 35V SNAP

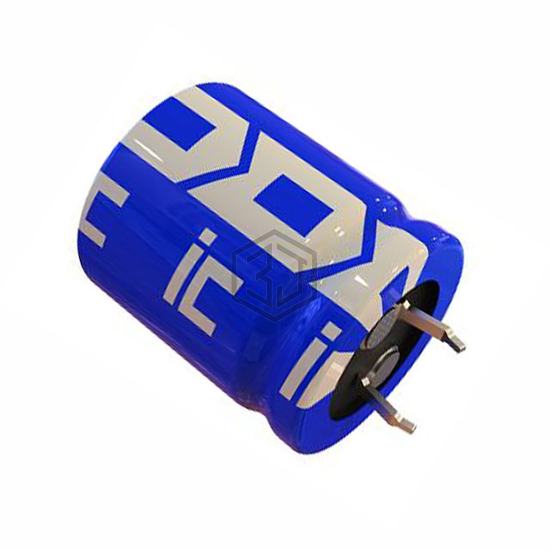

109LMU035M2CG is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 5,624
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 58.03mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.25 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
109LMU035M2CG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH350VNN103MA30W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 89% | View |
| 35VXG10000MEFCSN35X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 88% | View |
| EKMH500VNN103MR50S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 84% | View |
| SEK103M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V RADIAL | 70% | View |
| EKMH250VSN103MR25S | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 69% | View |
| B41605B109M8 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 55V RADIAL | 54% | View |
Submit your RFQ for 109LMU035M2CG and get a quote within 24 hours.
