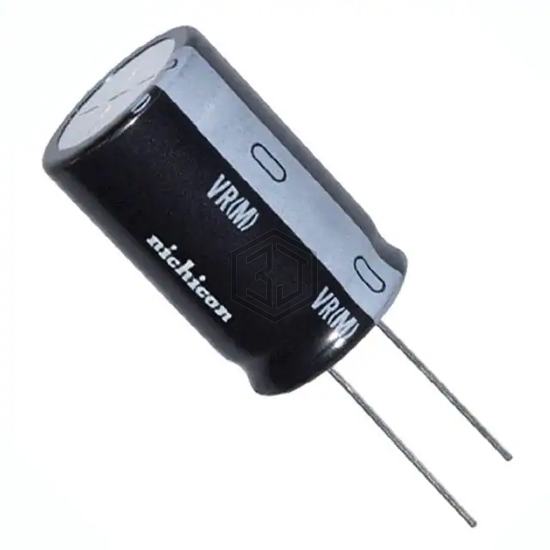

CAP ALUM 22000UF 20% 16V RADIAL
UVR1C223MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,242
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.6 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1C223MRD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH160VSN223MP50S | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 97% | View |
| 16VXG22000MEFC30X40 | Rubycon | CAP ALUM 22000UF 20% 16V SNAP | 93% | View |
| EKMH160VSN223MQ45T | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 90% | View |
| UKW1A223MRD | Nichicon | CAP ALUM 22000UF 20% 10V RADIAL | 82% | View |
| MAL205146223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V RADIAL | 70% | View |
| ECA-0JHG223 | Panasonic Electronic Components | CAP ALUM 22000UF 20% 6.3V RADIAL | 53% | View |
