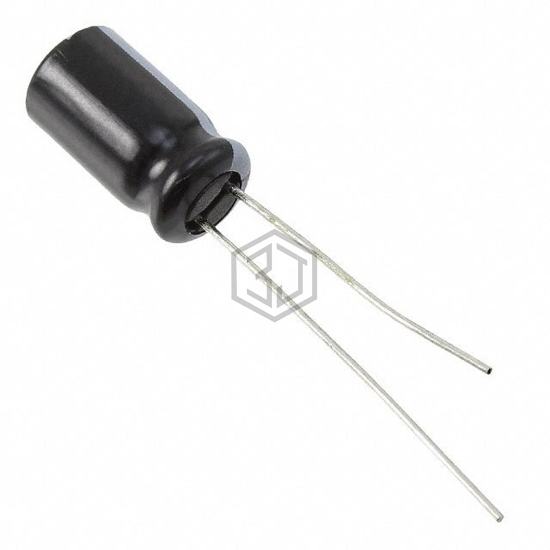

CAP ALUM 3.3UF 20% 250V RADIAL
UVK2E3R3MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,011
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 64 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVK2E3R3MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2E3R3MPD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 87% | View |
| UPW2D3R3MPH | Nichicon | CAP ALUM 3.3UF 20% 200V RADIAL | 87% | View |
| TVX2D3R3MAD1LV | Nichicon | CAP ALUM 3.3UF 20% 200V AXIAL | 84% | View |
| UVK2A3R3MDD | Nichicon | CAP ALUM 3.3UF 20% 100V RADIAL | 74% | View |
| UVR1H3R3MDD6 | Nichicon | CAP ALUM 3.3UF 20% 50V RADIAL | 74% | View |
| MAL203658338E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 63V RADIAL | 70% | View |
