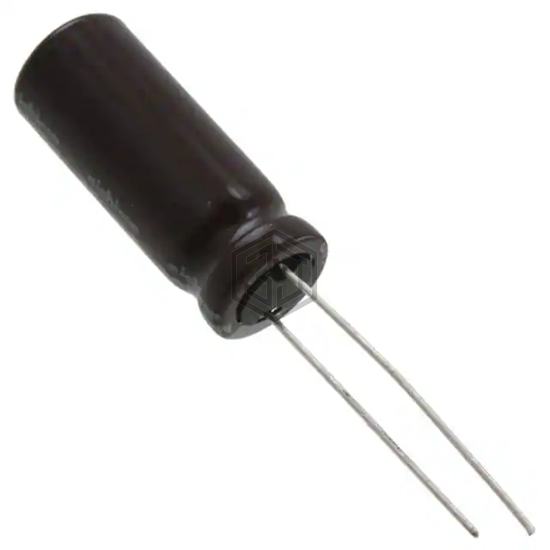

CAP ALUM 3.3UF 20% 250V RADIAL
UPJ2E3R3MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 5,871
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 83.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ2E3R3MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULD2E3R3MED | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 100% | View |
| REA08123R3M250B | KYOCERA AVX | CAP ALUM 250V POLAR | 95% | View |
| UPS2E3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 93% | View |
| UPW2D3R3MPH | Nichicon | CAP ALUM 3.3UF 20% 200V RADIAL | 79% | View |
| UKL1H3R3MDDANATA | Nichicon | CAP ALUM 3.3UF 20% 50V RADIAL | 72% | View |
| B41896C6335M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 66% | View |
