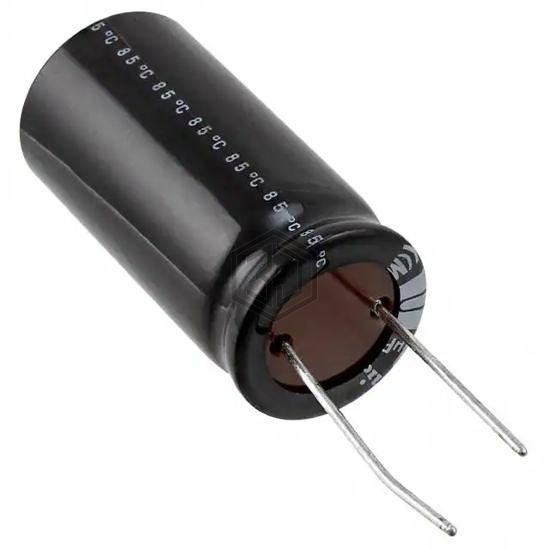

CAP ALUM 4700UF 20% 50V RADIAL
UVK1H472MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,370
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.335 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVK1H472MRD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ472M050H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 50V SNAP | 98% | View |
| EEU-FK1E472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 25V RAD TH | 69% | View |
| UPA1C472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 67% | View |
| MAL212015472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V AXIAL | 63% | View |
| 6.3YXJ4700M12.5X25 | Rubycon | CAP ALUM 4700UF 20% 6.3V RADIAL | 58% | View |
| LLS2A472MELC | Nichicon | CAP ALUM 4700UF 20% 100V SNAP | 51% | View |
Submit your RFQ for UVK1H472MRD and get a quote within 24 hours.
