CAP ALUM 22UF 20% 100V SMD

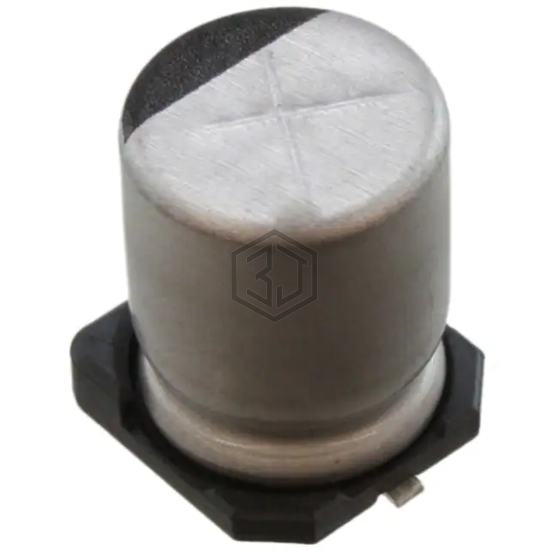

UUX2A220MNL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 2,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 121 mA @ 120 Hz |
| Ripple Current @ High Frequency | 202.07 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA226M2A24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V SMD | 100% | View |
| VZH220M2ATR-0810S | Surge | CAP ALUM 100V POLAR | 83% | View |
| AFK226M80F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 80V SMD | 77% | View |
| EEV226M016A9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 72% | View |
| ATB226M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| CEE1J220MCB0862 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
Submit your RFQ for UUX2A220MNL6GS and get a quote within 24 hours.
