CAP ALUM 10UF 20% 25V SMD

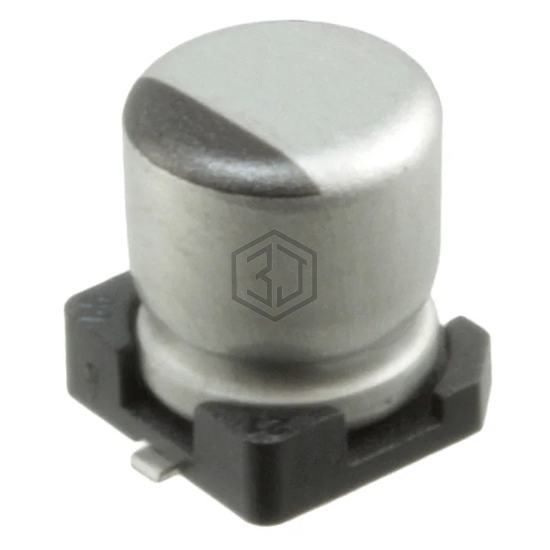

UUT1E100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,454
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23 mA @ 120 Hz |
| Ripple Current @ High Frequency | 34.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUT1E100MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES106M25C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V SMD | 94% | View |
| 35SKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 88% | View |
| 16NSKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 86% | View |
| UUP1V100MCL1GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| 35NSKV10M6.3X5.5 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| MAL215371109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 50V SMD | 67% | View |
