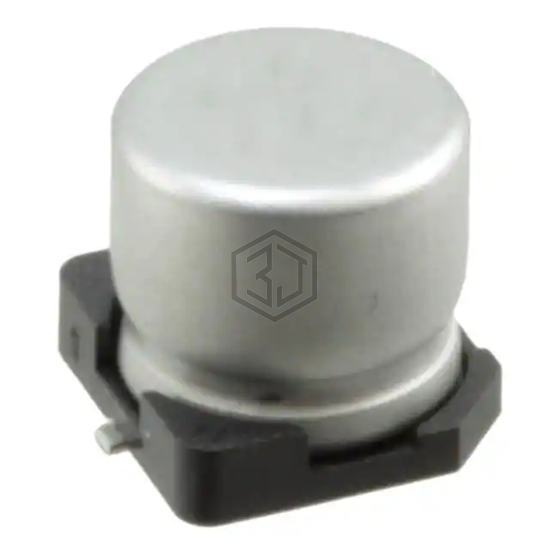

CAP ALUM 10UF 20% 35V SMD
UUP1V100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,431
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35SKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 91% | View |
| AVES106M25C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V SMD | 73% | View |
| 16NSKV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 68% | View |
| EEE-FN1K100XP | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 64% | View |
| EEE-FK1K100XL | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 61% | View |
| 16JZV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 61% | View |
