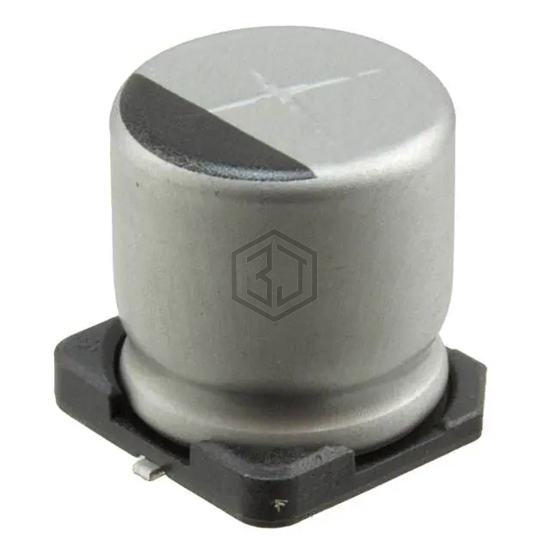

CAP ALUM 1500UF 20% 6.3V SMD
UUR0J152MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,116
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 489 mA @ 120 Hz |
| Ripple Current @ High Frequency | 635.7 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUR0J152MNL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVS158M06G24T-F | Cornell Dubilier Knowles | CAP ALUM 1500UF 20% 6.3V SMD | 76% | View |
| VUK152M1CTR-1616S | Surge | CAP ALUM 16V POLAR | 76% | View |
| MALSECV00AH415CARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 10V SMD | 72% | View |
| UWT0G152MNR1GS | Nichicon | CAP ALUM 1500UF 20% 4V SMD | 68% | View |
| MAL214099515E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V SMD | 57% | View |
| MAL214099615E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V SMD | 54% | View |
