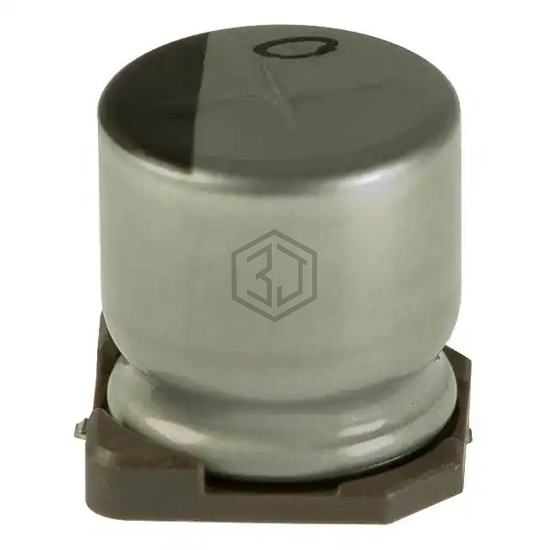

CAP ALUM 1500UF 20% 4V SMD
UWT0G152MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 2,595
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 465 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT0G152MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD0J152MNL1GS | Nichicon | CAP ALUM 1500UF 20% 6.3V SMD | 76% | View |
| UWD0J152MCL1GS | Nichicon | CAP ALUM 1500UF 20% 6.3V SMD | 76% | View |
| UCM0J152MNL1GS | Nichicon | CAP ALUM 1500UF 20% 6.3V SMD | 64% | View |
| EMZR6R3ARA152MHA0G | United Chemi-Con | CAP ALUM 1500UF 20% 6.3V SMD | 60% | View |
| EEE-FK0J152AP | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V SMD | 56% | View |
| AFK158M06G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 6.3V SMD | 54% | View |
