CAP ALUM 10UF 20% 50V SMD

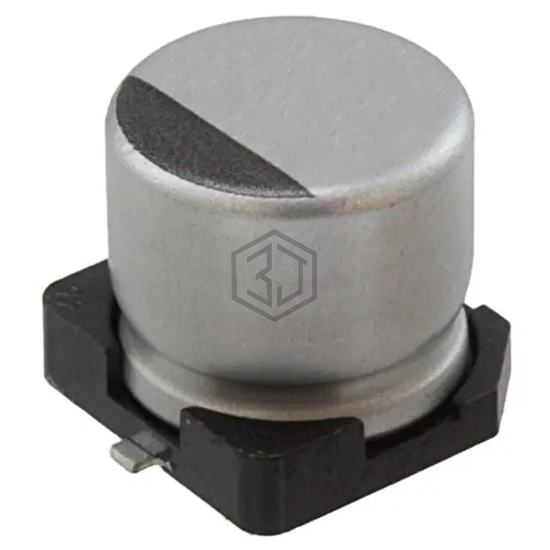

UUL1H100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 45 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HA1V100R | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 86% | View |
| RVS-35V100ME55U-R | Elna America | CAP ALUM 10UF 20% 35V SMD | 75% | View |
| EEE-FK1K100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 69% | View |
| EEE-FK1J100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 63% | View |
| UWG1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 60% | View |
| UWT1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 54% | View |
Submit your RFQ for UUL1H100MCL1GS and get a quote within 24 hours.
