CAP ALUM 10UF 20% 35V SMD

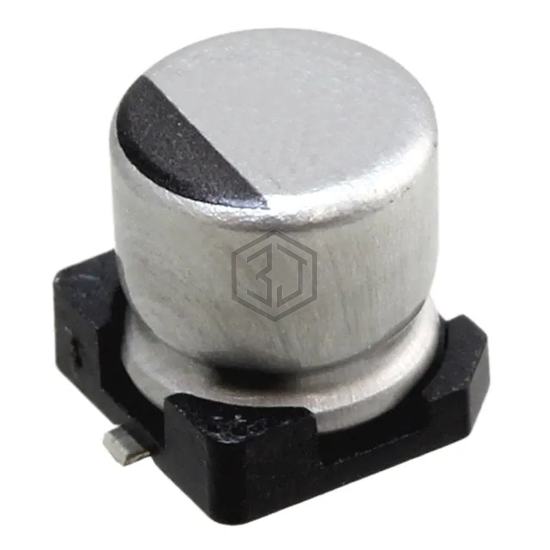

UWG1V100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,651
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1J100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 72% | View |
| EEE-FK1K100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 67% | View |
| 50TZV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 64% | View |
| VZH100M1HTR-0606S | SURGE | CAP ALUM 10UF 20% 50V SMD | 62% | View |
| EEE-FN2A100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 58% | View |
| RVS-35V100ME55U-R | Elna America | CAP ALUM 10UF 20% 35V SMD | 57% | View |
Submit your RFQ for UWG1V100MCL1GB and get a quote within 24 hours.
