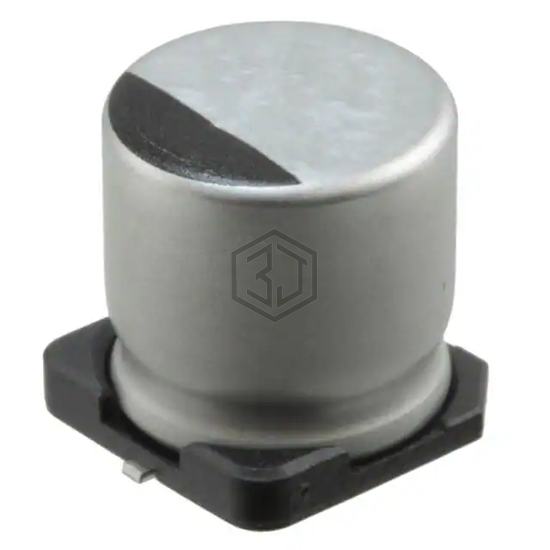

CAP ALUM 220UF 20% 25V SMD
UUL1E221MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,834
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 216 mA @ 120 Hz |
| Ripple Current @ High Frequency | 324 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALSECL00AF322EARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V SMD | 93% | View |
| UUA1C221MNL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 86% | View |
| EEE-FT1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 82% | View |
| EEE-TK2A221AM | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V SMD | 66% | View |
| EDH227M016S9MAA | KEMET | CAP ALUM 220UF 20% 16V SMD | 65% | View |
| EEE-FN1V221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V SMD | 61% | View |
Submit your RFQ for UUL1E221MNL1GS and get a quote within 24 hours.
