CAP ALUM 220UF 20% 16V SMD

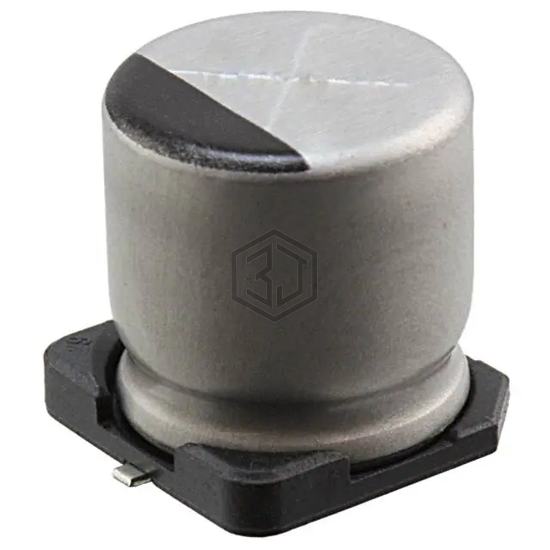

UUA1C221MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,034
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 216 mA @ 120 Hz |
| Ripple Current @ High Frequency | 324 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 96% | View |
| UUH1V221MNQ1MS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 75% | View |
| UUH1V221MNQ1ZD | Nichicon | CAP ALUM 220UF 20% 35V SMD | 75% | View |
| EXV227M025S9MAA | KEMET | CAP ALUM 220UF 20% 25V SMD | 56% | View |
| 35JZV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 52% | View |
| EEE-FN1V221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V SMD | 50% | View |
