CAP ALUM 220UF 20% 6.3V SMD

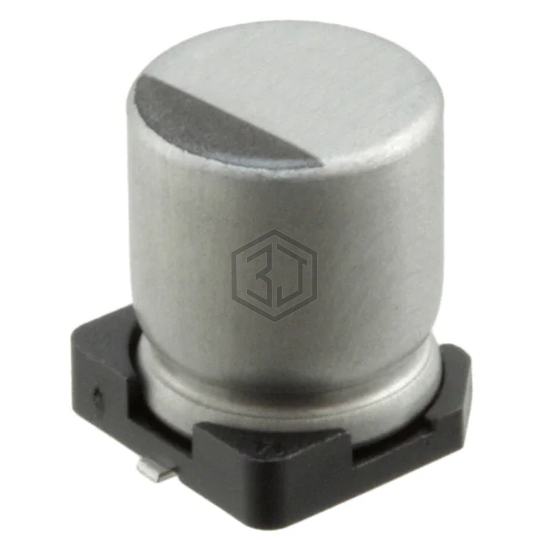

UUL0J221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,298
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 101 mA @ 120 Hz |
| Ripple Current @ High Frequency | 151.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213963221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 6.3V SMD | 98% | View |
| UWH1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 72% | View |
| 4SGV220M6.3X6.1 | Rubycon | CAP ALUM 220UF 20% 4V SMD | 71% | View |
| EEE-HD1A221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 61% | View |
| EEE-FT1A221AL | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 54% | View |
| EMHJ100ADA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 53% | View |
Submit your RFQ for UUL0J221MCL1GS and get a quote within 24 hours.
