CAP ALUM 220UF 20% 10V SMD

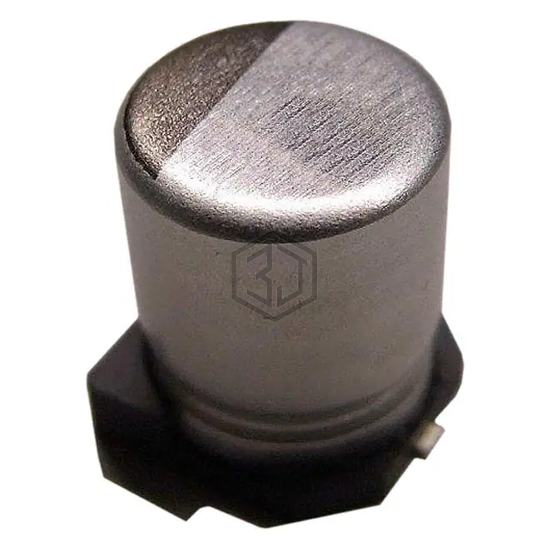

EMHJ100ADA221MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1A221MCS1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 88% | View |
| EMVH100ARA221MHA0G | Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 85% | View |
| UCJ1C221MCL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 79% | View |
| EEE-TG1V221UP | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V SMD | 73% | View |
| 227UVK035MGE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 35V SMD | 72% | View |
| UWH1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 52% | View |
Submit your RFQ for EMHJ100ADA221MHA0G and get a quote within 24 hours.
