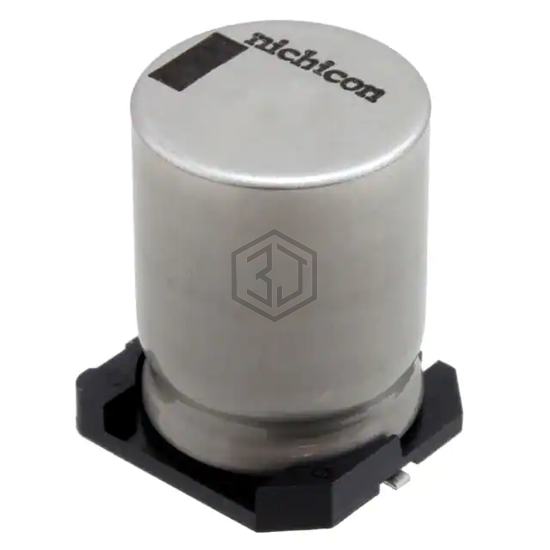

CAP ALUM 33UF 20% 400V SMD
UUJ2G330MRQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 2,155
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 256 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.831" L x 0.831" W (21.10mm x 21.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ2G330MRQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215299707E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V SMD | 86% | View |
| ATB336M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V SMD | 76% | View |
| AFK336M63F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 63V SMD | 75% | View |
| EMVH630ADA330MJA0G | United Chemi-Con | CAP ALUM 33UF 20% 63V SMD | 69% | View |
| EDH336M100S9MAA | KEMET | CAP ALUM 33UF 20% 100V SMD | 59% | View |
| EEE-HC1H330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 53% | View |
Submit your RFQ for UUJ2G330MRQ1ZD and get a quote within 24 hours.
