Cornell Dubilier / Illinois Capacitor

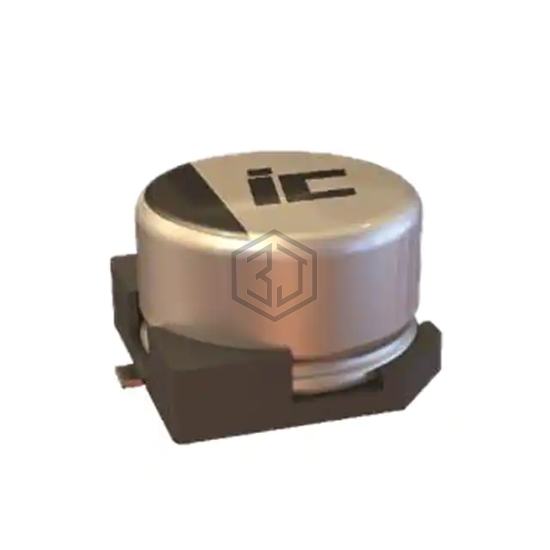

CAP ALUM 33UF 20% 35V SMD
ATB336M035 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 5.63Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 168 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 520 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.280" W (6.60mm x 7.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1E330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 83% | View |
| EXV336M050A9MAA | KEMET | CAP ALUM 33UF 20% 50V SMD | 75% | View |
| EEV336M025S9DAA | KEMET | CAP ALUM 33UF 20% 25V SMD | 66% | View |
| 336SVL035MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V SMD | 53% | View |
| 336AXZ010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 10V SMD | 51% | View |
| UT336M025HEHTA | Aillen | CAP. ALUM 33UF 25V 20% SMD | 50% | View |
Submit your RFQ for ATB336M035 and get a quote within 24 hours.
