CAP ALUM 33UF 20% 160V SMD

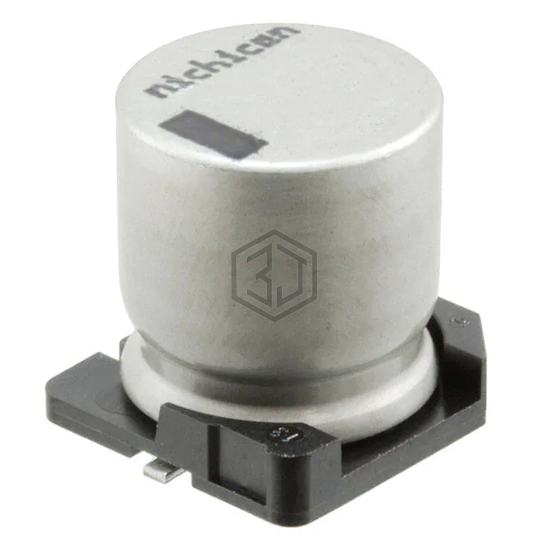

UUJ2C330MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 160V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - SMD.
In Stock: 6,097
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 152 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ2C330MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1H330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 73% | View |
| EDH336M100S9PAA | KEMET | CAP ALUM 33UF 20% 100V SMD | 70% | View |
| 865080645010 | Würth Elektronik | CAP ALUM 33UF 20% 50V SMD | 67% | View |
| UWD1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 64% | View |
| UUA1H330MNL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 62% | View |
| 865230545004 | Würth Elektronik | CAP ALUM 33UF 20% 35V SMD | 53% | View |
Submit your RFQ for UUJ2C330MNQ1ZD and get a quote within 24 hours.
