CAP ALUM 1000UF 20% 10V SMD

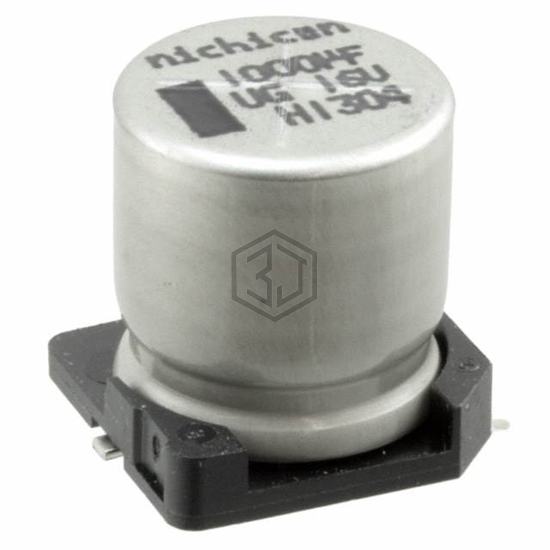

UUG1A102MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,266
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 713 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUG1A102MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY100ADA102MJA0G | United Chemi-Con | CAP ALUM 1000UF 20% 10V SMD | 88% | View |
| UWS1A102MCL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 88% | View |
| UUJ1C102MNQ1MS | Nichicon | CAP ALUM 1000UF 20% 16V SMD | 85% | View |
| EEE-FK0J102GV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 74% | View |
| MAL226099107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 67% | View |
| 865230157008 | Würth Elektronik | CAP ALUM 1000UF 20% 6.3V SMD | 58% | View |
Submit your RFQ for UUG1A102MNQ1ZD and get a quote within 24 hours.
