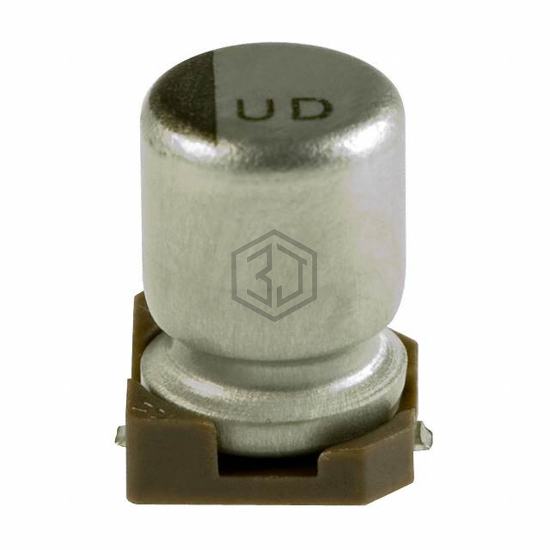

CAP ALUM 2.2UF 20% 50V SMD
UUD1H2R2MCR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,455
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUD1H2R2MCR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215371228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 50V SMD | 87% | View |
| 50SGV2.2M4X6.1 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 78% | View |
| UWT1H3R3MCL1GB | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 74% | View |
| MAL213968228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 63V SMD | 68% | View |
| 865060640002 | Würth Elektronik | CAP ALUM 2.2UF 20% 50V SMD | 61% | View |
| 35NSKV2R2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 35V SMD | 55% | View |
Submit your RFQ for UUD1H2R2MCR1GS and get a quote within 24 hours.
