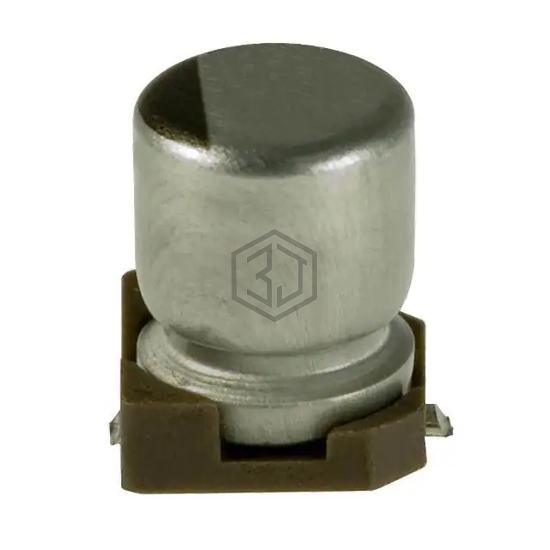

CAP ALUM 3.3UF 20% 50V SMD
UWT1H3R3MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14 mA @ 120 Hz |
| Ripple Current @ High Frequency | 21 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080742008 | Würth Elektronik | CAP ALUM 3.3UF 20% 63V SMD | 93% | View |
| 335AVD050MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 50V SMD | 90% | View |
| MVY50VC3R3MD55TP | United Chemi-Con | CAP ALUM 3.3UF 20% 50V SMD | 88% | View |
| UE335M050HCHTA | Aillen | CAP ALUM 3.3UF 20% 50V SMD | 88% | View |
| MAL215371228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 50V SMD | 68% | View |
| MAL213968228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 63V SMD | 60% | View |
