CAP ALUM 22UF 20% 50V SMD

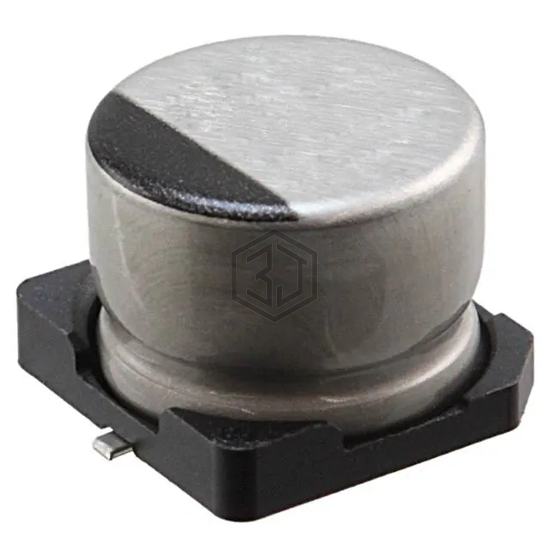

UUB1H220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,166
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 57 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVH50VC22RMF80TP | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 96% | View |
| MVH63VC22RMH10TP | United Chemi-Con | CAP ALUM 22UF 20% 63V SMD | 90% | View |
| EEE-TG1H220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 84% | View |
| UCJ1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| EDT226M050A9LAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 69% | View |
| ULH2D220MNL1GS | Nichicon | CAP ALUM 22UF 20% 200V SMD | 53% | View |
Submit your RFQ for UUB1H220MCL1GS and get a quote within 24 hours.
