CAP ALUM 4.7UF 20% 50V SMD

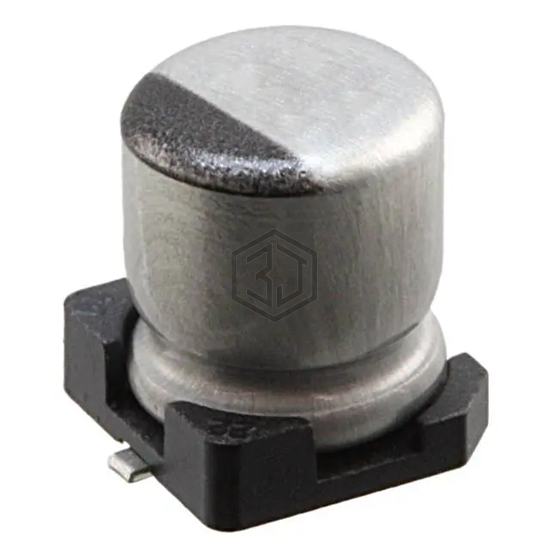

UUA1H4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
| Ripple Current @ High Frequency | 33 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 98% | View |
| UWG1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 87% | View |
| UUD1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 79% | View |
| UUA1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 74% | View |
| UUP1E4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 25V SMD | 64% | View |
| AVEZ475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 52% | View |
Submit your RFQ for UUA1H4R7MCL1GS and get a quote within 24 hours.
