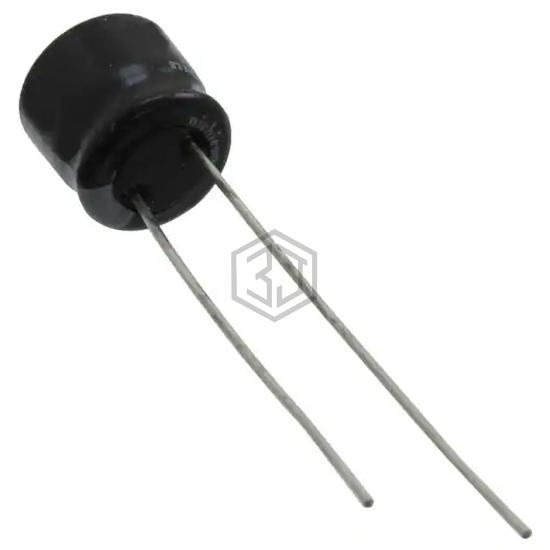

CAP ALUM 220UF 20% 6.3V RADIAL
UST0J221MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,012
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 195 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UST0J221MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM0J221MED1TD | Nichicon | CAP ALUM 220UF 20% 6.3V RADIAL | 80% | View |
| UVY1A221MDD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 78% | View |
| ECA-1CHG221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V RADIAL | 63% | View |
| 860080273007 | Würth Elektronik | CAP ALUM 220UF 20% 10V RADIAL | 58% | View |
| 601D227G025FE2 | Vishay Sprague | CAP ALUM 220UF 25V AXIAL | 56% | View |
| MAL216031221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 56% | View |
