Panasonic Electronic Components
CAP ALUM 220UF 20% 16V RADIAL

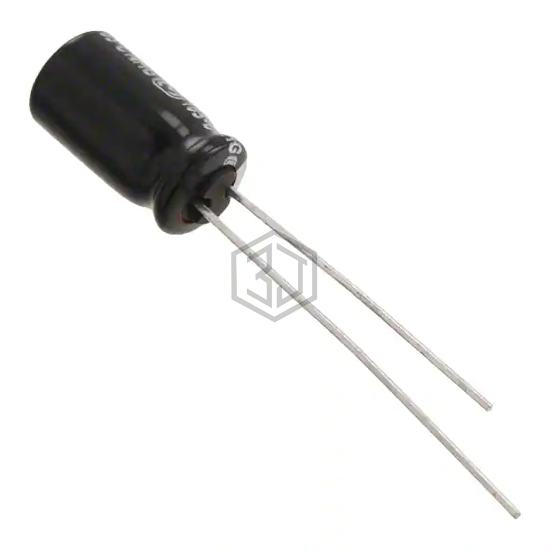

ECA-1CHG221B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,869
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1C221MPD1TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 94% | View |
| UPW1A221MED1TD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 83% | View |
| EKMG350EC3221MHB5D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 60% | View |
| UPW1E221MPD1TD | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 59% | View |
| EKMQ500ELL221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 54% | View |
| 517D227M035CC8PE3 | Vishay Sprague | CAP ALUM 220UF 20% 35V RADIAL | 51% | View |
