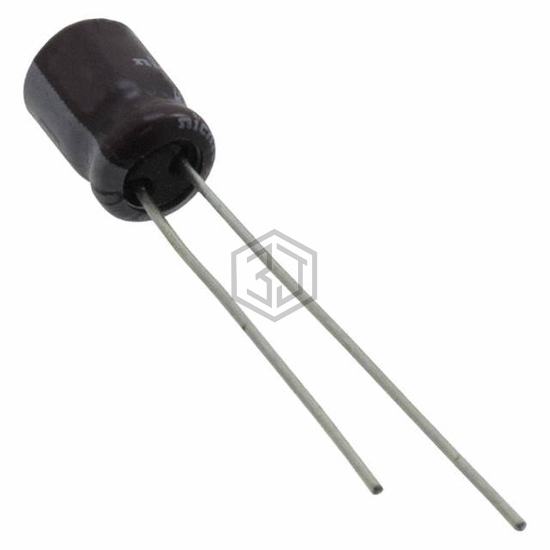

CAP ALUM 15UF 20% 25V RADIAL
USF1E150MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,236
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1E150MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1V150 | Panasonic Electronic Components | CAP ALUM 15UF 20% 35V RADIAL | 79% | View |
| MAL212327159 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15UF 20% 40V AXIAL | 75% | View |
| EEA-GA1H150B | Panasonic Electronic Components | CAP ALUM 15UF 20% 50V RADIAL | 73% | View |
| UMF1C150MDD | Nichicon | CAP ALUM 15UF 20% 16V RADIAL | 70% | View |
| UMF1C150MDD1TE | Nichicon | CAP ALUM 15UF 20% 16V RADIAL | 69% | View |
| UPW1J150MEH | Nichicon | CAP ALUM 15UF 20% 63V RADIAL | 67% | View |
