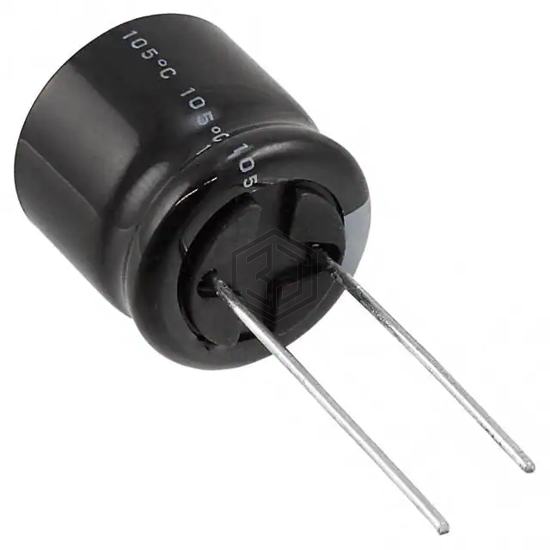

CAP ALUM 470UF 20% 63V RADIAL
URZ1J471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,959
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 960 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214658471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| ELXY500ETD471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 79% | View |
| MAL213636471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| 678D477M063ER5J | Vishay Sprague | CAP ALUM 470UF 20% 63V RADIAL | 71% | View |
| B41789K8477Q001 | EPCOS - TDK Electronics | CAP ALUM 470UF 63V RADIAL | 64% | View |
| B41888C7477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 61% | View |
Submit your RFQ for URZ1J471MHD and get a quote within 24 hours.
