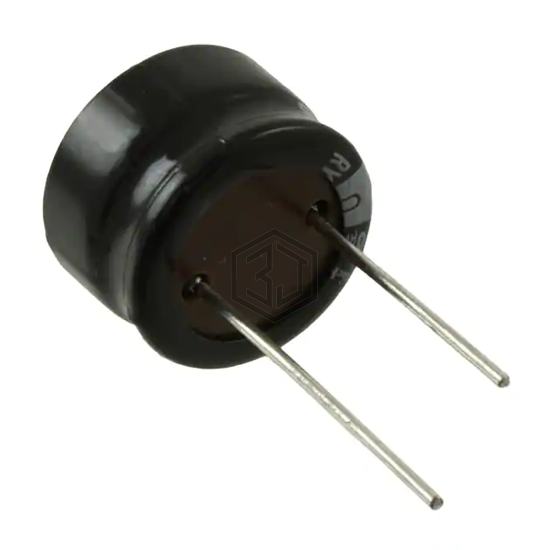

CAP ALUM 22UF 20% 315V RADIAL
URY2F220MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 6,773
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 136 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY2F220MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW22MEFC10X30 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 85% | View |
| 100YXF22MEFCTA8X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 74% | View |
| UPJ1K220MED1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 74% | View |
| UVZ1H220MDH | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 74% | View |
| SEK220M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V RADIAL | 63% | View |
| 50YXM22MEFR6.3X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for URY2F220MHD1TN and get a quote within 24 hours.
