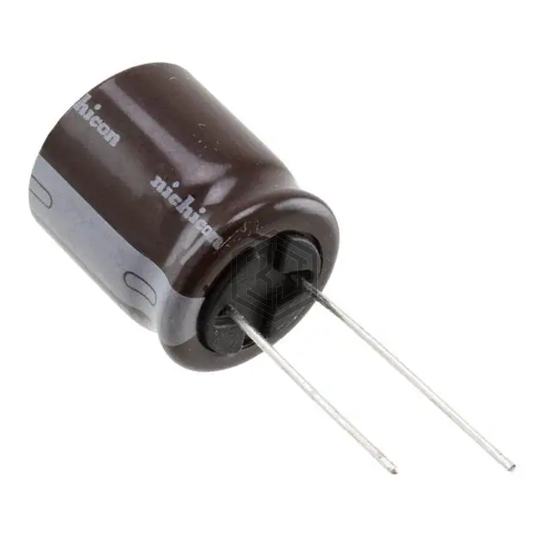

CAP ALUM 2200UF 20% 35V RADIAL
UPA1V222MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.244 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1V222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RAD TH | 99% | View |
| EEU-FC1V222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RADIAL | 96% | View |
| EEU-FK1E222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RAD TH | 84% | View |
| ELBG250ELL222AL20S | United Chemi-Con | CAP ALUM 2200UF 25V RADIAL | 78% | View |
| MAL211916222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 25V AXIAL | 61% | View |
| B41607A7228M9 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 40V RADIAL | 60% | View |
